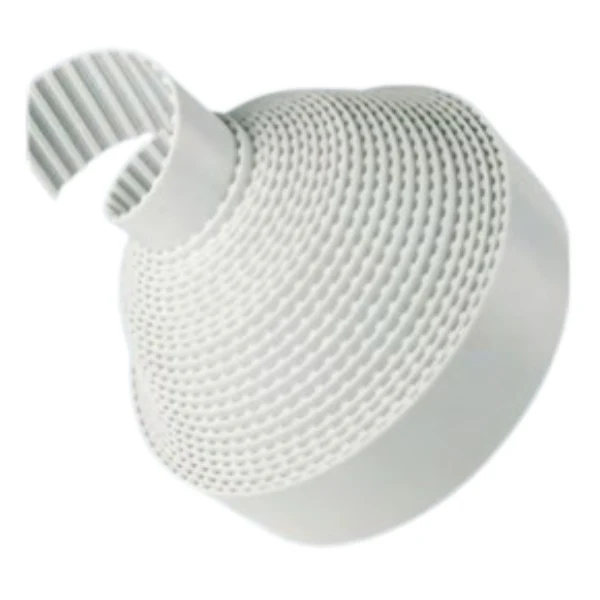

Product Details : "XH" Open End Timing Belt 101.6mm Wide - Kevlar Cord | LXH400URK

• Part No: LXH400URK
• Product Type: Polyurethane Open End Timing Belt
• Length: Sold Per Foot (ft)
• Belt Profile: XH
• Belt Pitch: 22.225mm
• Belt Width: 101.6mm (4.00")
• Tooth Height: 6.35mm
• Belt Thickness: 11.2mm
• Tooth Cover: None
• Back Cover: None
• Max Traction Load (N) : 25965
• Breaking Strength (N): 90875
• Elongation at MTL (mm/m) : 8
• Standard Width Tolerance: +/- 1mm
• Standard Length Tolerance: +/- 0.8mm
• Standard Thickness Tolerance: +/- 0.5mm
• ISO: ISO 5296-1
• Material(s): White Polyurethane Thermoplastic 92 ShA
• Material Cord: Kevlar

Belts offered with AVAFC coating (60/70/85 ShA) and in custom widths. For more information and pricing about these custom products please contact us.

For any information about products, please contact us.

*Photos for reference purposes only.
