US Motors U1P2G | T-Frame Motor 1HP, 1800RPM, 575V, Frame 143T, TEFC

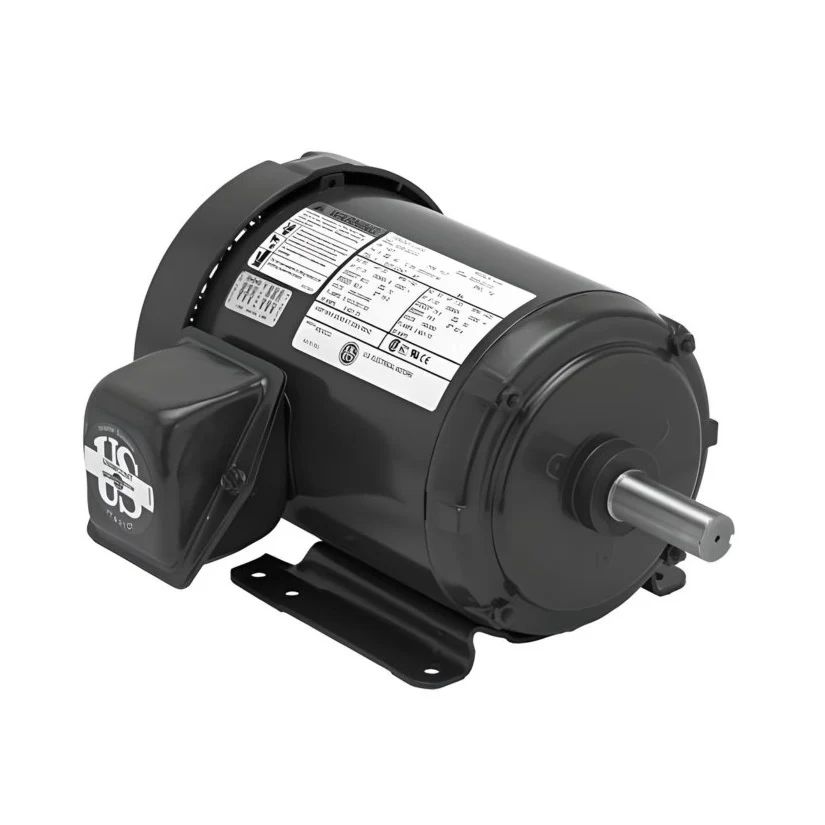

Product image 1

US Motors U1P2G | T-Frame Motor 1HP, 1800RPM, 575V, Frame 143T, TEFC

• Dimension Print Available Here

Product Details : US Motors U1P2G | T-Frame Motor 1HP, 1800RPM, 575V, Frame 143T, TEFC

  • Part No: U1P2G
  • Product Type: T-Frame - TEFC
  • Categories: Steel Edge NEMA Premium
  • Brand: US Motors - Nidec
  • Frame: 143T
  • Enclosure: TEFC
  • Horsepower (HP): 1
  • Poles: 4
  • RPM: 1800
  • Voltage: 575V
  • Phase: 3
  • Number Of Speeds: 1
  • Frequency (Hz): 60
  • Amps: 1.1
  • Features:
    Applications: For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.
    • Rolled Steel Frame
    • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
    • CE Mark On Nameplate (140 Frames and Ratings with Note 03)
    • Shaft Slinger On Pulley End
    • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Wave Power
    • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
    • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
    • 1.15 Service Factor

For any information about products, please contact us.

*Photos for reference purposes only.

$346.36
US Motors U1P2G | T-Frame Motor 1HP, 1800RPM, 575V, Frame 143T, TEFC—
$346.36

Product Information

Shipping & Returns

Description

• Dimension Print Available Here

Product Details : US Motors U1P2G | T-Frame Motor 1HP, 1800RPM, 575V, Frame 143T, TEFC

  • Part No: U1P2G
  • Product Type: T-Frame - TEFC
  • Categories: Steel Edge NEMA Premium
  • Brand: US Motors - Nidec
  • Frame: 143T
  • Enclosure: TEFC
  • Horsepower (HP): 1
  • Poles: 4
  • RPM: 1800
  • Voltage: 575V
  • Phase: 3
  • Number Of Speeds: 1
  • Frequency (Hz): 60
  • Amps: 1.1
  • Features:
    Applications: For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.
    • Rolled Steel Frame
    • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
    • CE Mark On Nameplate (140 Frames and Ratings with Note 03)
    • Shaft Slinger On Pulley End
    • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Wave Power
    • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
    • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
    • 1.15 Service Factor

For any information about products, please contact us.

*Photos for reference purposes only.
