• Dimension Print Available Here

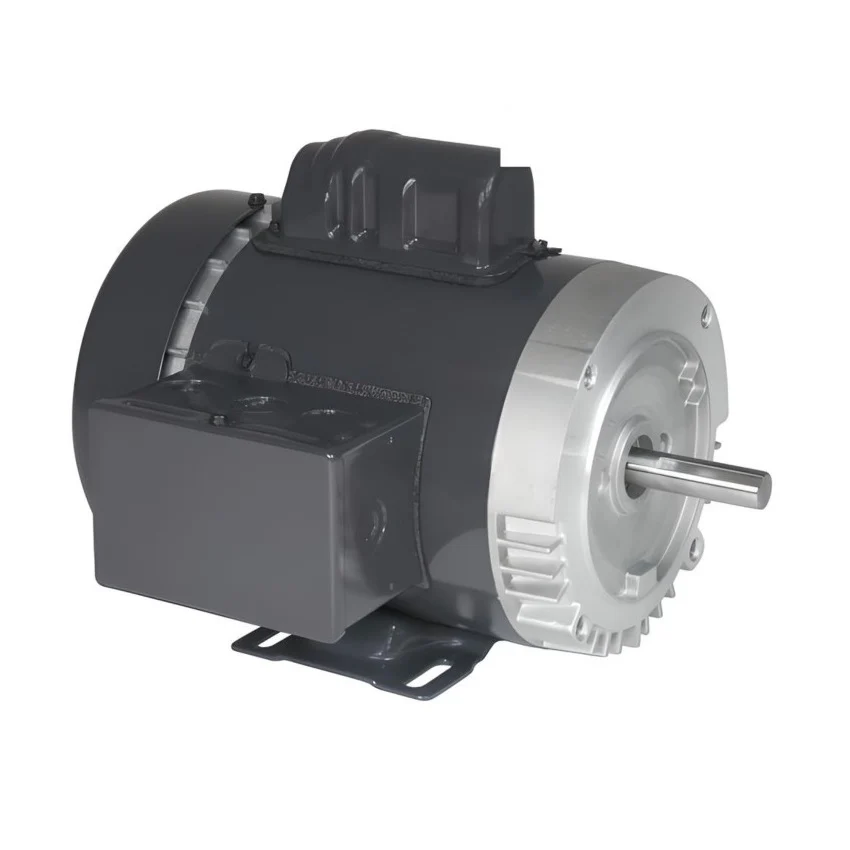

Product Details : US Motors T1C1JC | General Purpose Motor 1HP, 3600RPM, 115/208-230V, Frame 56C, TEFC

• Part No: T1C1JC
• Product Type: General Purpose Motor
• Categories: General Purpose Capacitor Start
• Brand: US Motors - Nidec
• Frame: 56C
• Enclosure: TEFC
• Horsepower (HP): 1
• Poles: 2
• RPM: 3600
• Voltage: 115/208-230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 13.6/6.9-6.8
• Features:
  • Double Shielded Ball Bearings
  • Class B Insulation
  • Continuous Duty
  • 40°C Ambient
  • F1 Assembly
  • Reversible Rotation
  • 50/60 Hz Motors Have 1.0 S.F. on 50 Hz

For any information about products, please contact us.

*Photos for reference purposes only.
