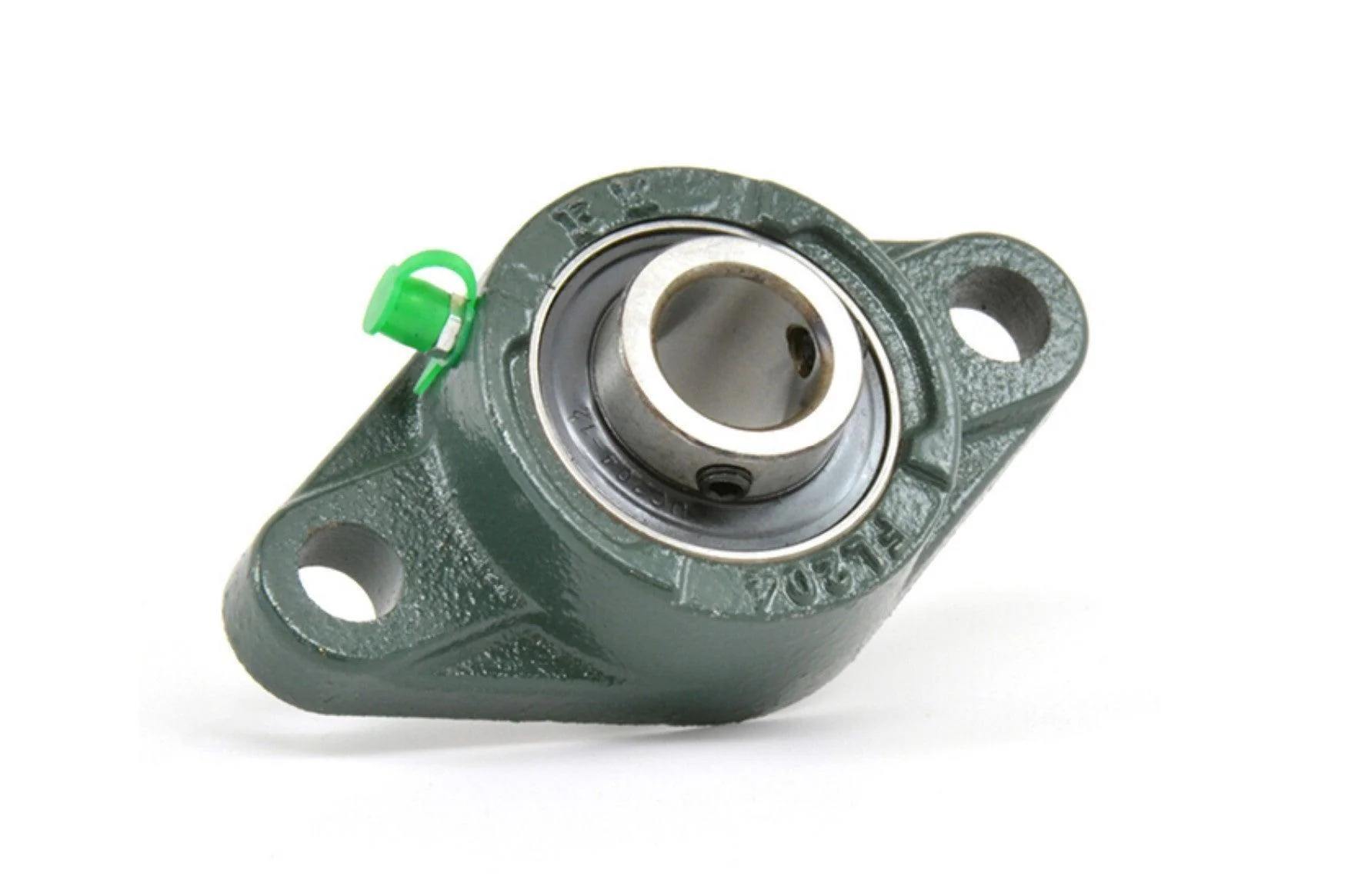

UCFL207-23 | 1-7/16" Shaft 2-Bolt Flange Bearing Units with Set Screws

Details & Specifications

• Part No: UCFL207-23
• Shaft Dia Inch: 1,438

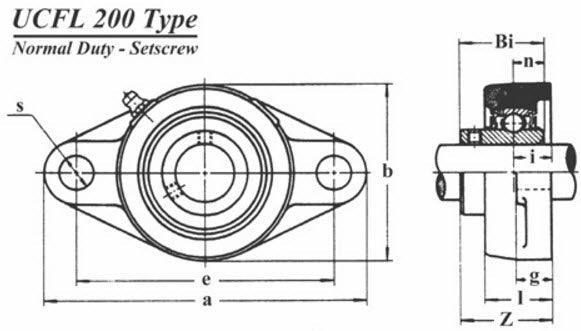

• Dimensions (Inches) **a**: 6-11/32
• Dimensions (Inches) **e**: 5 1/8
• Dimensions (Inches) **i**: 3/4
• Dimensions (Inches) **g**: 35/64
• Dimensions (Inches) **l**: 1-13/32
• Dimensions (Inches) **s**: 5/8
• Dimensions (Inches) **b**: 3-35/64
• Dimensions (Inches) **Z**: 1-3/4
• Dimensions (Inches) **Bi**: 1,689
• Dimensions (Inches) **n**: 0,689
• Bolt Used: 0,5
• Wgt. Lbs.: 2,98

For any information about products, please contact us.

*Photos for reference purposes only.
