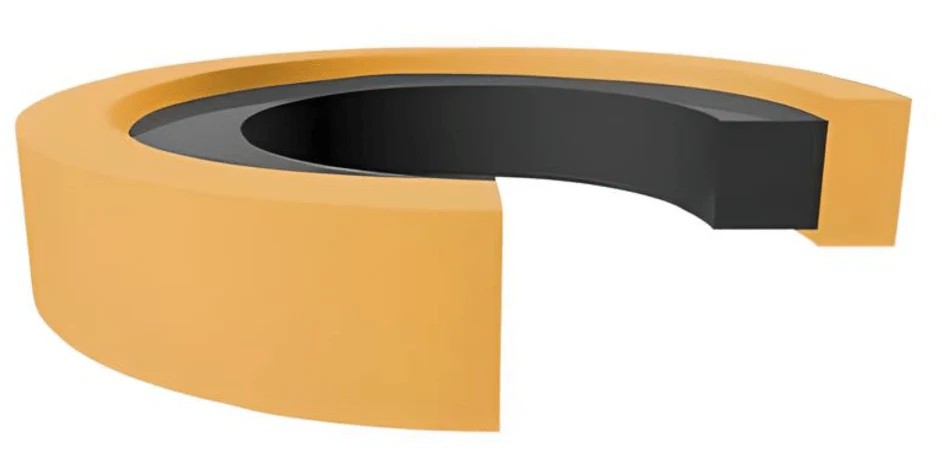

Product Details : Piston U-Seal (E4) 6.000" x 5.375" x 0.312" - Nitroxile

• Part No: E41005375/4274
• Product Category: Piston Seals
• Product Type: Piston U-Seal
• Profile: E4
• Material(s): Nitroxile
• Durometer: 83A
• Temperature Range: -10°F to +250°F (-23°C to +121°C)
• Pressure Range: ≤ 250 PSI (≤ 17 Bar)
• Surface Speed: < 3 ft/s (0.9 m/s)
• System Of Measurement: Inch
• Bore Diameter: 6.000"
• Dimensions: 6.000" x 5.375" x 0.312"
• Nominal I.D. (d): 5.375"
• Nominal O.D. (D): 6.000"
• Nominal Height (H): 0.312"
• Nominal Cross Section: 0.312"
• Details:
  •Non-symmetrical, designed to seal both lubricated and non-lubricated air

For any information about products, please contact us.

*Photos for reference purposes only.
