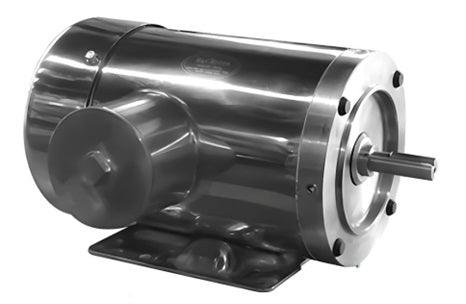

Product Details : Max Motion MQS-112M4FC-S3 | IEC Motor 5.5HP, 1800RPM, 208-230/460V, Frame 112M, TEFC, Rigid Base

• Part No: MQS-112M4FC-S3
• Product Type: IEC Motor
• Brand: Max Motion
• Frame: 112M
• Horsepower (HP): 5.5
• RPM: 4 pôles-1400 to 1800
• Voltage: 208-230/460 (3 PH)
• Phase: 3
• F.L. Amps: 14.6-13.2/6.6
• Enclosure: TEFC
• Base: Rigid
• With Flange: No
• Material(s): Stainless Steel
• Details:
  • Inverter Duty Magnet Wire
  • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque
  • Meets or exceeds MG1 Part 31.4.4.2
  • IEC Design N, with NEMA Design B Torque characteristics
  • Class F Insulation, with B Temperature Rise
  • At 60Hz : 208-230/460v Dual Rated & Plated for 50Hz : 190/380-415v
  • IP66 Inversion Protection
  • Round Terminal Box with encapsulated lead wires
  • VPI with additional dip and Bake
  • Viton Seal installed on both shaft ends with stainless steel shaft slinger
  • Bonded Stainless Steel Washers
  • 304 Grade Stainless Steel Construction
  • 1.15 Service Factor
  • Rigid Base
  • B14 and B5 Flanges available
  • CE & cCSAus Approval
  • Industry leading Three Years Warranty
  SPECIAL FEATURE:
  • Custom capabilities for unique voltage windings, 2 speeds, special shafts & flanges with typical turn-around in 3-5 working days
  APPLICATIONS:
  • Poultry, Bottling, Environments where cleanliness is key, Fish, Food processing, Wash down type environments, Brewery, Pharmaceutical, Medical manufacturing.

For any information about products, please contact us.

*Photos for reference purposes only.
