Max Motion MPP-106 | T-Frame Motor 300HP, 3600RPM, 575V, Frame 449TS, TEFC, Cast Iron

Product image 1
1 / 2

Max Motion MPP-106 | T-Frame Motor 300HP, 3600RPM, 575V, Frame 449TS, TEFC, Cast Iron

Product Details : Max Motion MPP-106 | T-Frame Motor 300HP, 3600RPM, 575V, Frame 449TS, TEFC, Cast Iron

  • Part No: MPP-106
  • Product Type: T-Frame TEFC
  • Brand: Max Motion
  • Frame: 449TS
  • Horsepower (HP): 300
  • RPM: 2 pôles-2500 to 3600
  • Voltage: 575 (3 PH)
  • F.L. Amps: 256
  • Phase: 3
  • Enclosure: TEFC
  • Base: Rigid
  • Material(s): Cast Iron
  • Details:
    • MG-1 Design B and MG-1 Part 31
    • Meets or exceeds NEMA Premium Efficiencies
    • Division 2 / Zone 2 Class 1 (gases), Groups A, B, C, D
    • Meets Temperature Code T2B
    • IP55 enclosure
    • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF
    • Meets MG1 parts 31.4.4.2
    • 1.25 Service Factor 1-50HP, 1.15 60-300HP
    • Class F Insulation
    • F1 Standard Assembly, Reversible to F2 Assembly
    • CSAus & CE Certified
    • Three Year Warranty

For any information about products, please contact us.

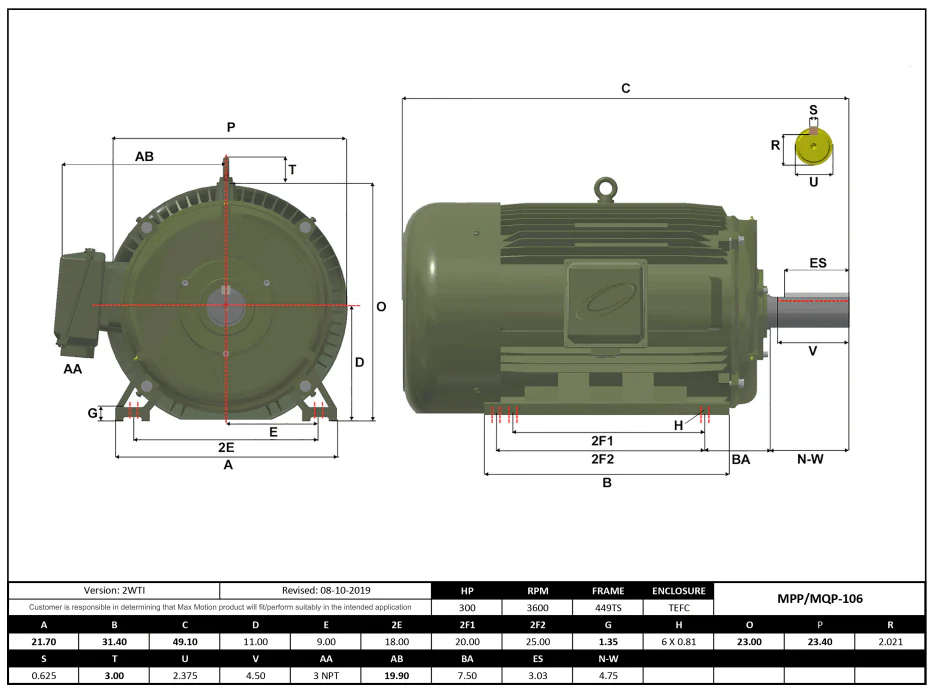

*Photos for reference purposes only.

$14,958.87
Max Motion MPP-106 | T-Frame Motor 300HP, 3600RPM, 575V, Frame 449TS, TEFC, Cast Iron—
$14,958.87

Product Information

Shipping & Returns

Description

Product Details : Max Motion MPP-106 | T-Frame Motor 300HP, 3600RPM, 575V, Frame 449TS, TEFC, Cast Iron

  • Part No: MPP-106
  • Product Type: T-Frame TEFC
  • Brand: Max Motion
  • Frame: 449TS
  • Horsepower (HP): 300
  • RPM: 2 pôles-2500 to 3600
  • Voltage: 575 (3 PH)
  • F.L. Amps: 256
  • Phase: 3
  • Enclosure: TEFC
  • Base: Rigid
  • Material(s): Cast Iron
  • Details:
    • MG-1 Design B and MG-1 Part 31
    • Meets or exceeds NEMA Premium Efficiencies
    • Division 2 / Zone 2 Class 1 (gases), Groups A, B, C, D
    • Meets Temperature Code T2B
    • IP55 enclosure
    • Inverter Duty 10:1 Constant Torque, 20:1 Variable Torque 1.0 SF
    • Meets MG1 parts 31.4.4.2
    • 1.25 Service Factor 1-50HP, 1.15 60-300HP
    • Class F Insulation
    • F1 Standard Assembly, Reversible to F2 Assembly
    • CSAus & CE Certified
    • Three Year Warranty

For any information about products, please contact us.

*Photos for reference purposes only.
