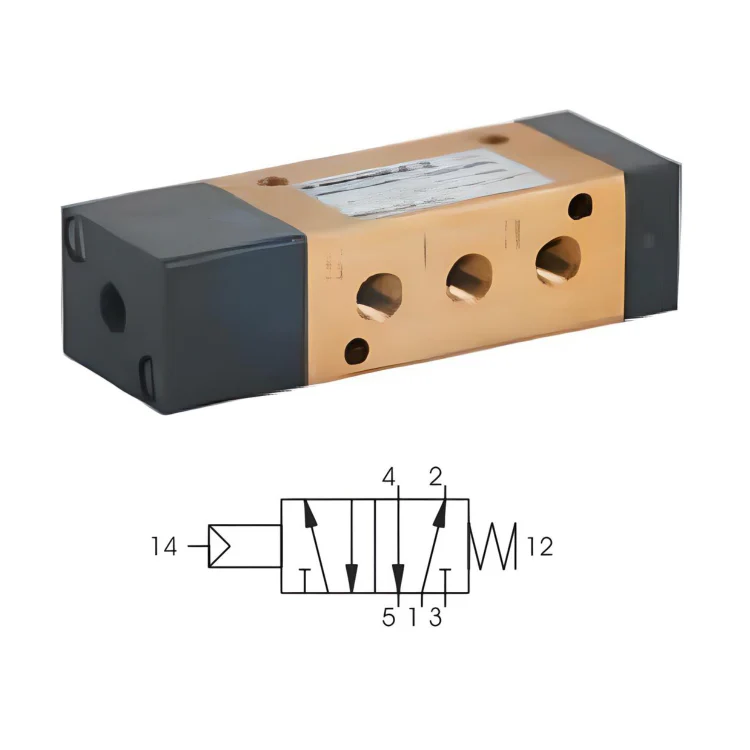

Product Details : M5 Air Pilot Valve M5, 5/2 Single Acting Pressure 2 bar

• Part No: 805.52.11.1
• Product Type: Air Pilot Valve
• Series: 800
• Valve Code: 805
• Fluid: Filtered air
• Pilot Ports Size: M5
• Working Ports size: M5
• Orifice Size (mm): 2.5
• Exhaust Port Size: M5
• Valve Type: Spool Valve
• Actuation: Pneumatic
• Return Actuation: Spring
• Actuation Type: Single Acting
• Valve Diagram: 5/2
• Minimum Pilot Pressure: 2 bar
• Max Working Pressure: 10 bar
• Operating Temperature °C: -5°C +70°C
• Flow rate at 6 bar with Δp=1 (Nl/min): 160
• Body Material: Aluminum
• Operators: Aluminum
• Spools: Aluminum
• Seals: HNBR
• Pistons: Aluminum
• Springs: Stainless steel
