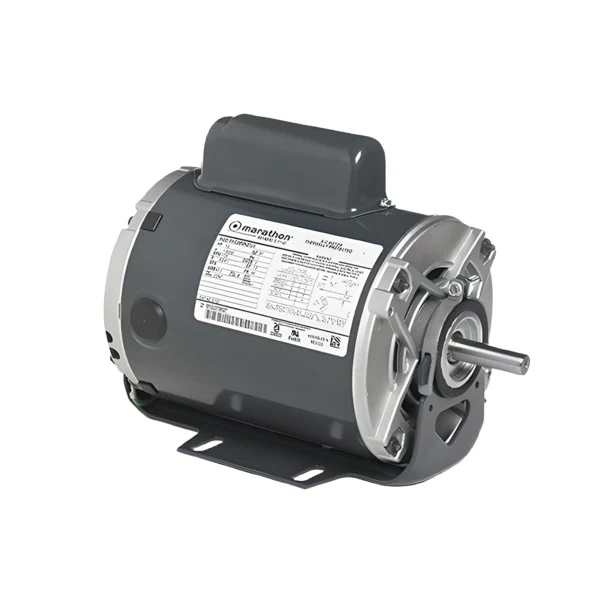

Product Details : Leeson B319 | HVAC Motor 3/4HP, 1800RPM, 115/208-230V, Frame 56, ODP

• Part No: B319
• Product Type: HVAC Motor
• Category: Capacitor Start Induction Run
• Brand: Leeson/Marathon
• Frame: 56
• Enclosure: ODP
• Horsepower (HP): 3/4
• Poles: 4
• RPM: 1400 to 1800
• Voltage: 115/208-230V
• Phase: 1
• Number Of Speeds: 1
• Frequency (Hz): 60
• Amps: 10.0/5.0
• Features:
  • Fan & Blower - Capacitor Start, Drip proof Motors
  • Resilient Base Motors (Single & Two-Speed)
  • Ball bearings, except as noted
  • Heavy gauge steel frame and base
  • Service factor, as noted
  • Capacitor start / capacitor run as noted
  • Thermal protection, as noted
  • 48Y and 48YZ frame have 48/56 frame mounting holes
  • UL recognized and CSA certified
  • Model 056C17D2074
